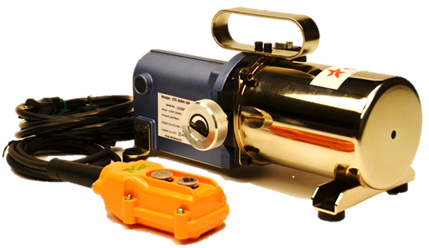

Electric-Powered Hydraulic Pumps - STE-35

These versatile electric pumps can safely deliver up to 10,000 psi of hydraulic pressure and can be configured in a variety of ways to activate single or double acting cylinders. The base models utilize a remote pendant or an attached switch along with a 49 cu-in. (.26 gal) reservoir to power a single acting cylinder. A larger 98 cu-in. (.52 gal) reservoir is available as well.  These pumps can be configured to use a variety of activation configurations. Optional normally open or normally closed solenoids are available. If a double acting cylinder load is required, a 4 way, 3 position solenoid valve is available.


  • This series of Electric pumps deliver hydraulic fluid to pressures up to 10,000 psi using a 1/3 HP, 2,000 RPM commutator motor.
  • The lightweight and compact design of these pumps provides ultimate portability.
  • All weather performance – These pumps are fully sealed making them available for outdoor use and operable in any position.
  • Optional remote pendant or attached switch
  • Optional solenoid and 4 way manual control valve models are available upon request.
Item # Max Flow - 1st StageMax Flow - 2nd StageMax Pressure - 1st StageMax Pressure - 2nd StageMotor OutputMotor VoltageOil CapacityOutlet Port Size (NPTF)Usable Oil CapacityWeight
STE-35-4MB 37 in3/min18 in3/min145 psi10,000 psi2,000 rpm110 V0.26 gal3/8 in0.21 gal17 lb
STE-35-1M 37 in3/min18 in3/min145 psi10,000 psi2,000 rpm110 V0.26 gal3/8 in0.21 gal18 lb
