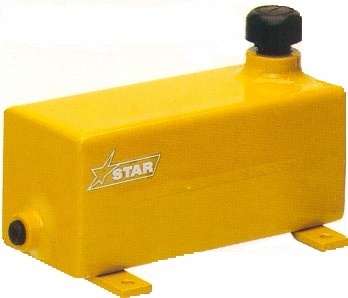

Star Oil Reservoirs
Star Oil Reservoirs are available in standard and custom configurations to match a range of customer applications. These all-steel, painted reservoirs are offered in two standard cross-sectional sizes and can be made in custom lengths to meet specific capacity requirements. They can also be mounted horizontally or vertically for added installation flexibility.
Key Features:
• ¾ NPT breather plug
• Horizontal or vertical mounting
• Standard and custom lengths available
• Standard and custom capacities available
| Part Number | Horizontal Fill Volume (in3) | Mounting Position | Reservoir Length (in) | Usable Horizontal Volume (in3) | Usable Vertical Volume (in3) | Vertical Fill Volume (in3) |
|---|---|---|---|---|---|---|
| R4-9 | Horizontal or Vertical | 9-1/2 | 74 | 119 | ||
| R4-17 | 135 | Horizontal or Vertical | 17-1/2 | 140 | 232 | 239 |
| R4-25 | Horizontal or Vertical | 25-1/2 | 206 | 345 | ||
| R4-34 | Horizontal or Vertical | 34-1/2 | 280 | 472 | ||
| R4-50 | Horizontal or Vertical | 50-1/2 | 412 | 697 | ||
| R6-4 | Horizontal or Vertical | 4-1/2 | 96 | 116 | ||
| R6-8 | Horizontal or Vertical | 8-1/2 | 193 | 248 | ||
| R6-12 | Horizontal or Vertical | 12-1/2 | 290 | 380 | ||
| R6-15 | Horizontal or Vertical | 15-1/2 | 362 | 480 | ||
| R6-23 | Horizontal or Vertical | 23-1/2 | 555 | 745 |
