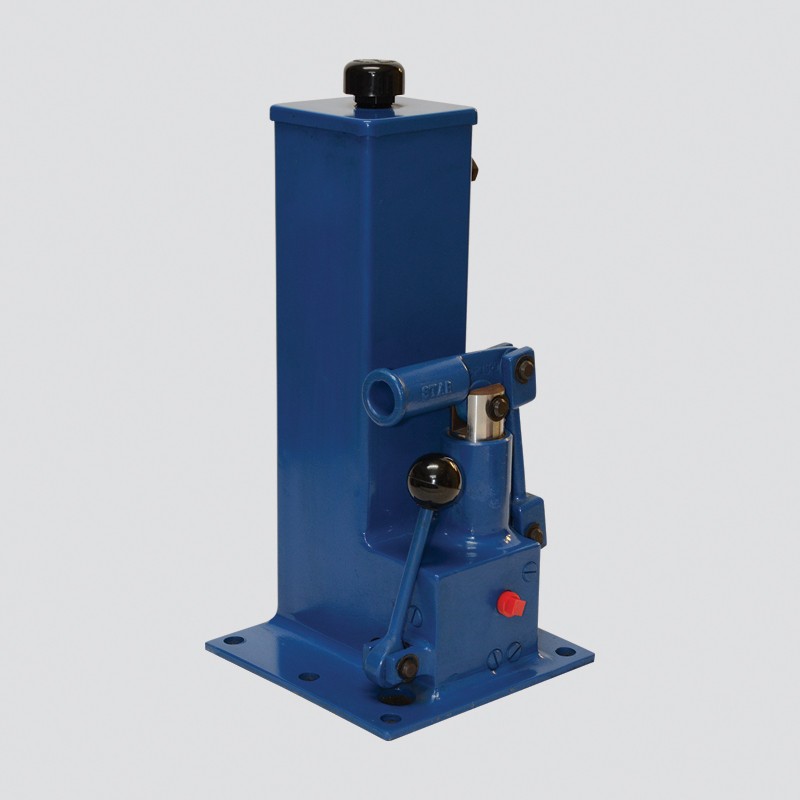

Hand Operated Hydraulic Pumps - CP & CPS Series with Reservoirs - 160 in3 Reservoir, 10,000 PSI

CP Series pumps use two-speed operation to move between high-volume, low-pressure flow and low-volume, high-pressure output as needed. With built-in reservoir capacity, this series offers a complete hand-operated solution for efficient manual hydraulic pressure.

Mounting StyleBase
Lever TypeHand
Usable Reservoir Volume (in3)160
Maximum Pressure Rating (PSI)10000
Displacement per Lever Cycle Lg Piston (in3)1.84
Displacement per Lever Cycle Sm Piston (in3)0.29
Adjustable Overload Relief Valve IncludedYes
Manual Pressure Release Valve IncludedYes
Release TypeCam
Piston Diameter (in)1 1/4-1/2
Lever Force per 100 PSI (lb)12
Standard Materials of Construction Carbon Steel / Aluminum/ Ductile Iron
Piston Diameter (in) 1-1/4 – 1/2
Inlet/Outlet Port Size (in) 3/8
Operating Lever Size (in) 24
Lever Force per 100 PSI (lb) 12
Net Weight (lb) 36

Star pumps can be configured to support specific system requirements and operating conditions.

Materials of Construction
To specify an alternate material of construction, add the corresponding material code to the end of the part number (Example: CP04-160-SS).

  • SS: 100% Stainless Steel
  • SSB: Stainless Steel with Bronze Piston
  • SC: Carbon Steel with Stainless Steel Wetted Parts
  • SCB: Carbon Steel with Stainless Steel Wetted Parts and Bronze Piston

Seal Types

  • Nitrile (NBR)(Standard)
  • Fluorocarbon (FKM)
  • Ethylene Propylene Rubber (EPR)
  • Arctic Service Nitrile (NBR)

Colors & Finishes

  • Star Blue (Standard), Gray, Black, White, Red, Yellow, Primer Only, No Paint

Reservoirs

  • Standard capacities include 80, 160, and 250 in³
  • Custom reservoir sizes available upon request

4-Way Valve Configuration

  • Available on “P”, “CP”, “SP” and “PH” pump models by adding -4V to the part number (Example: CP04-160-4V)
CP13-160 Dimensional Drawing
CP-Series.pdf

Star Hydraulics Product Catalog
Star Hydraulics Product Catalog

What size hydraulic pump do I need?
The right hydraulic pump size depends on the required flow rate, pressure, cycle speed, and application. Proper sizing helps support performance and reduce unnecessary heat or wear.

When should I use a hydraulic pump with or without a reservoir?

  • A hydraulic pump with a reservoir is typically used when the system needs a dedicated supply of hydraulic fluid for its full operating cycle.
  • A pump without a reservoir may be used when the system already has a separate fluid source or when space, weight, or system layout needs to be considered.

Does this hydraulic pump come filled with hydraulic oil?
Most Star Hydraulics units do not ship with hydraulic oil unless it is requested. Lift jacks are the exception and include hydraulic oil as standard. Star Hydraulics also sells standard hydraulic oil under part number SFM-HV-15.

What seal options does Star Hydraulics offer?
Star Hydraulics offers the following seal options:

  • Nitrile (NBR)(Standard)
  • Fluorocarbon (FKM)
  • Ethylene Propylene Rubber (EPR)
  • Arctic Service Nitrile

Can Star Hydraulics set overload valves to a custom maximum PSI?
Yes. Star Hydraulics can set the pressure overload relief valve to a requested maximum PSI when specified.

Does Star Hydraulics offer stainless steel hydraulic pumps?
Yes. Star Hydraulics offers many of our standard product lines featuring stainless steel construction.

Can Star Hydraulics provide custom hydraulic pump solutions?
Yes. Custom hydraulic products and solutions are a key part of Star Hydraulics’ expertise. Please provide project details, application requirements, forecasted volume, and any existing Star part you would like to modify or replicate.

Does Star Hydraulics offer service or repair kits for hydraulic pumps?
Yes. Star Hydraulics services its own manufactured goods and offers repair kits for all Star products. Email sales@starhyd.com with the part number, and the team can assist from there.
