AK6030R, 6.0 Inch (in) Bore Size and 30 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder

SKU: AK6030R Category:

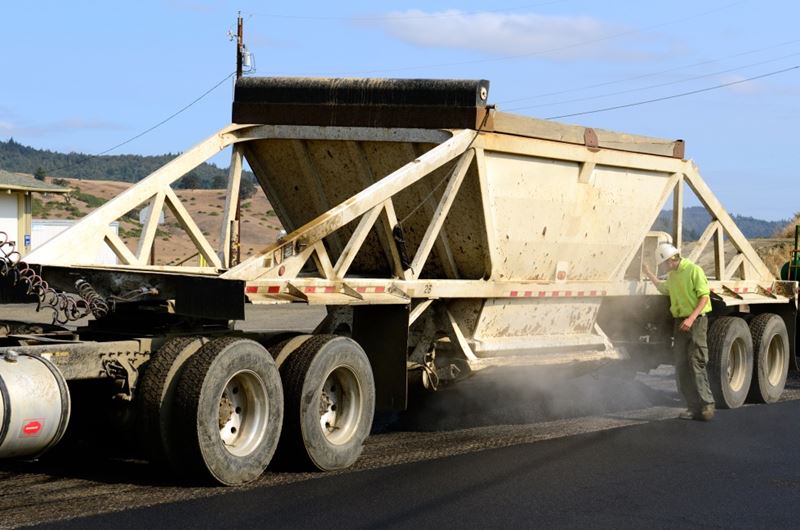

Belly-Dump cylinders typically require heavy-duty pneumatic cylinders with bore sizes in the 6″ to 8″ range and stroke lengths between 20″ and 30″. Star’s expertise with these cylinder sizes comes from our experience building large bore, heavy duty cylinders over the last 40 years.

Bore Size6.0 in
Stroke Length30 inch
Rod Diameter1.25 in
Port Size1/2 in
Port Thread TypeNational Pipe Thread (NPT)
Thread Size1 in. - 14
Industry StandardsISO 9001 (International Organization for Standardization)
Thread TypeUnified National Fine Thread (UNF)
Working Pressure150 psi

Balance of Toughness and Weight

Rugged high-tensile steel rods and mounting bracket combined with an aluminum cylinder body to provide toughness where it is needed while reducing overall weight.

All Weather Performance

Seals and other components selected for the best performance over a wide temperature range.

Superior Reliability

“Less is best” design using minimal parts for maximum reliability.

Easy To Install

Valve, Clevis Designed for Fast, Easy Installation.

Industry Standards

ISO 9001 (International Organization for Standardization)

Additional Information

Star truck cylinders are designed to meet the needs of the trucking industry. They are designed to stand-up to the wide variations in weather and environment. Our primary focus is on providing a reliable cylinder that meets the needs of our customer and their specific application. With that in mind, we offer a line of standard cylinders but are open to providing custom stroke lengths, rod ends and attachments in order to provide better value and performance.

At Star, we take our ISO 9001 certification very seriously so that you can rely on consistently excellent quality. We take pride in our customer service and our ability to reduce lead-times on production orders as well as meet promised delivery dates.

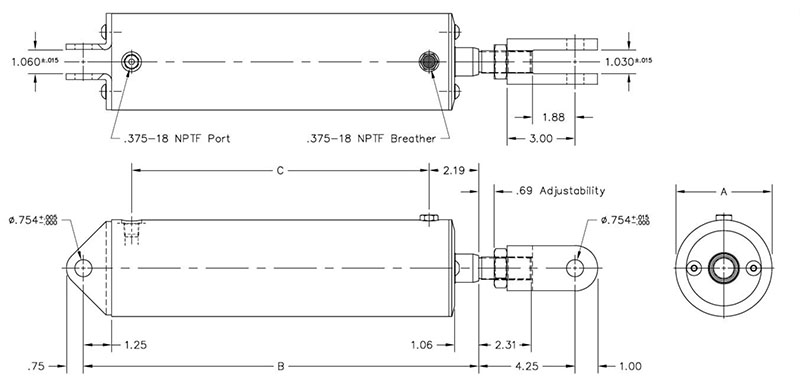

Dimensional Information

Dimension A6.25in
Dimension B36.94in
Dimension C32.62in
Dimensional DrawingDimensional Drawing for product
