With or Without Manual Pressure Release Valve
Without Reservoir
Without Overload Relief Valve

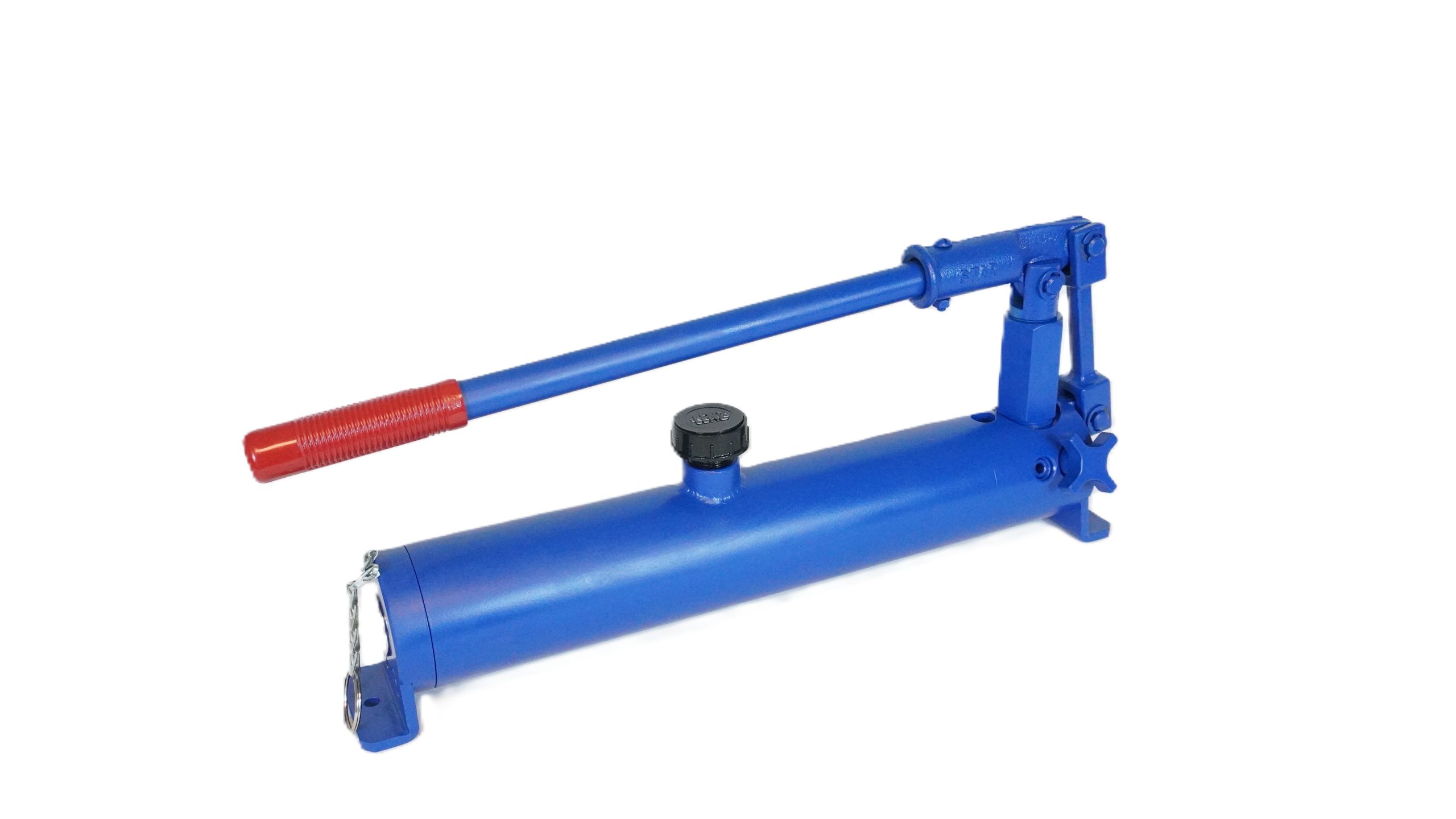

This PS series pump is one of the most economical hand pumps available, yet it is made from the same quality components that are used in other Star pumps.

  • With or without pressure release valve
  • Economical
  • Compact size
  • Steel pump body
  • Ground and Hard chrome plated piston
  • 24″ lever included
  • Maximum pressure 5000 PSI
  • Without overload valve
Oil Reservoirfalse
Manual Pressure Release ValveNo
Body MaterialSteel
PistonHard Chrome Plated
Maximum Pressure Rating5000 PSI
Piston Diameter5/8 in
Volume per Stroke0.30 in3
Lever Load per 1000 PSI19.0
Inlet Port Size (NPTF)1/4
Outlet Port Size (NPTF)1/4 in
Net Weight6 lbs


    Limited Warranty

    All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.

    Technical Data

    Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.
    All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
