Pumps With 4-Way Valves

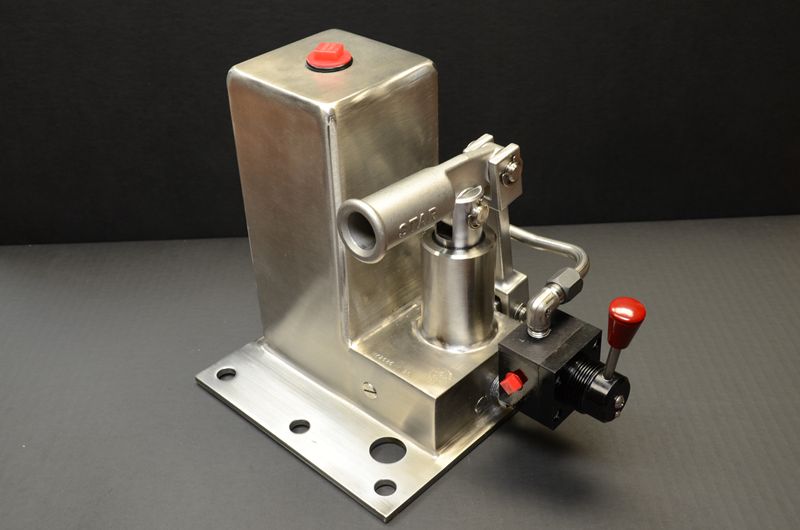

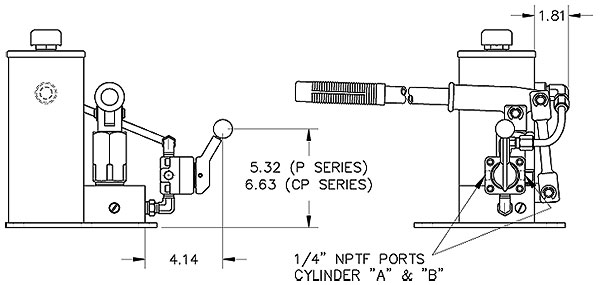

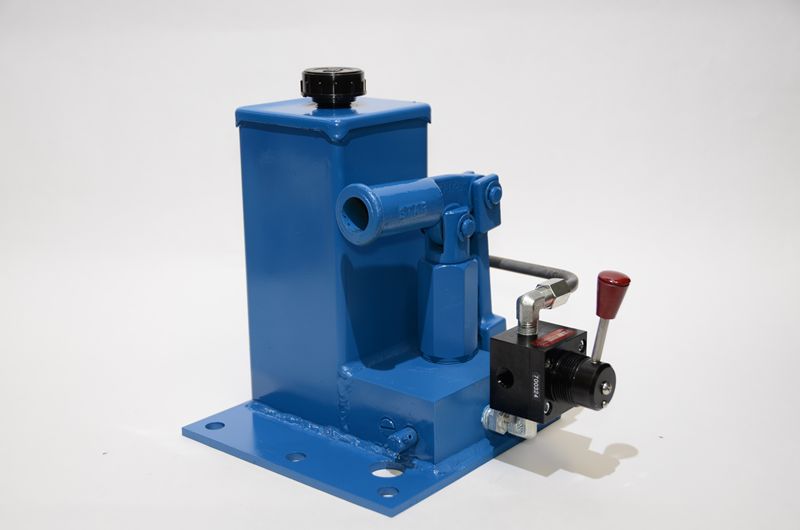

Hydraulic pumps with a 4-Way Directional Control Valve are designed for double-acting cylinders, allowing advance and retract functions at full pump pressure. These pumps currently feature a side-port mounted control valve, with a manifold-mounted valve option coming soon. To configure, select the appropriate pump series and add “-4V” to the model number (example: P2A-160-4V).
Available Pump Series:
• Single-speed: P Series, SP Series, and PH Series
• Two-speed: CP Series
| Part Number | Maximum Pressure Rating (PSI) | Piston Diameter (in) | Reservoir Volume (in3) | Series | Mounting | Volume per Stroke |
|---|---|---|---|---|---|---|
| CP13-160-4V | 10000 | 1 1/4-1/2 | 160 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP13-250-4V | 10000 | 1 1/4-1/2 | 250 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP13-80-4V | 10000 | 1 1/4-1/2 | 80 | CP | Two Speed, Base Mounted | 1.84 in3 |
| CP14-160-4V | 10000 | 1 1/2-1/2 | 160 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP14-250-4V | 10000 | 1 1/2-1/2 | 250 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP14-80-4V | 10000 | 1 1/2-1/2 | 80 | CP | Two Speed, Base Mounted | 2.65 in3 |
| CP15-160-4V | 10000 | 2-1/2 | 160 | CP | Two Speed, Base Mounted | 4.71 in3 |
| CP15-250-4V | 10000 | 2-1/2 | 250 | CP | Two Speed, Base Mounted | 4.71 in3 |
| CP15-80-4V | 10000 | 2-1/2 | 80 | CP | Two Speed, Base Mounted | 4.71 in3 |
| P1A-160-4V | 10000 | 1/2 | 160 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-250-4V | 10000 | 1/2 | 250 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-80-4V | 10000 | 1/2 | 80 | P | Single Speed, Base Mounted | 0.29 in3 |
| P1A-LR-4V | 10000 | 1/2 | P-LR | Base Mounted | 0.29 in3 | |
| P2A-160-4V | 5000 | 3/4 | 160 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-250-4V | 5000 | 3/4 | 250 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-80-4V | 5000 | 3/4 | 80 | P | Single Speed, Base Mounted | 0.66 in3 |
| P2A-LR-4V | 5000 | 3/4 | P-LR | Base Mounted | 0.66 in3 | |
| P3A-160-4V | 2500 | 1 | 160 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-250-4V | 2500 | 1 | 250 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-80-4V | 2500 | 1 | 80 | P | Single Speed, Base Mounted | 1.18 in3 |
| P3A-LR-4V | 2500 | 1 | P-LR | Base Mounted | 1.18 in3 | |
| P4A-160-4V | 1500 | 1 1/4 | 160 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-250-4V | 1500 | 1 1/4 | 250 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-80-4V | 1500 | 1 1/4 | 80 | P | Single Speed, Base Mounted | 1.84 in3 |
| P4A-LR-4V | 1500 | 1 1/4 | P-LR | Base Mounted | 1.84 in3 | |
| P5A-160-4V | 1000 | 1 1/2 | 160 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-250-4V | 1000 | 1 1/2 | 250 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-80-4V | 1000 | 1 1/2 | 80 | P | Single Speed, Base Mounted | 2.65 in3 |
| P5A-LR-4V | 1000 | 1 1/2 | P-LR | Base Mounted | 2.65 in3 | |
| P6A-160-4V | 500 | 2 | 160 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-250-4V | 500 | 2 | 250 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-80-4V | 500 | 2 | 80 | P | Single Speed, Base Mounted | 4.71 in3 |
| P6A-LR-4V | 500 | 2 | P-LR | Base Mounted | 4.71 in3 |
