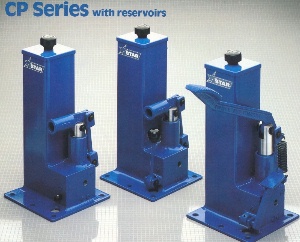

Foot Operated Hydraulic Pumps - FCP Series with Reservoirs
With Oil Reservoir
With Adjustable Overload Relief Valve
With Manual Pressure Release Valve
Star two-speed Hi-Lo pumps provide rapid movement at low pressure for the part of a cylinder's stroke where no work is encountered. The pump automatically switches to high pressure when the cylinder must deliver maximum push or pull force. Changeover from high volume-low pressure to low volume-high pressure occurs automatically at approximately 300 PSI. Star's unique valving allows a single 24" lever to be used for both high pressure and low pressure pumping so there is no need to interrupt pumping to move the lever to another socket. The foot operated model has a release pedal. Built-in reservoirs of any size may be specified. The adjustable overload valve will be set at the maximum pressure at the factory unless a lower pressure is specified by the customer. The overload can be adjusted by the customer in the field, if required.
Features:
- 2 speed pumps that provide pressure up to 20,000 PSI
- Rapid movement at low pressure when minimal work is needed
- Switches to high pressure to deliver maximum force
- Hand operated versions are available
- Includes Manual Pressure release valve with screw of cam release
- Customer specified overload relief valve setting
- Three standard reservoir sized available, 80 cu", 160 cu" and 250 cu". Optional sized available.
Design Details:
- Steel pump bodies
- Pistons ground and hard chrome plated
Design Notes:
- Factory overload will be set at maximum unless a lower pressure is specified by the customer. To specify a pressure, add to end of the part number (ex: FCP13-80-8000)
- All CP04 style pumps have a unique port to handle the high pressure requirements. See the CP04 port drawing for detailes information on this port configuration.
Item # | Foot Lever Load per 100 PSI | Maximum Pressure Rating | Net Weight | Piston Diameter | Reservoir Volume |
---|---|---|---|---|---|
FCP15-80 | 23.0 lb | 5000 PSI | 33 lb | 2-1/2 in | 80 in3 |
FCP15-250 | 23.0 lb | 5000 PSI | 44 lb | 2-1/2 in | 250 in3 |
FCP15-160 | 23.0 lb | 5000 PSI | 36 lb | 2-1/2 in | 160 in3 |
FCP14-80 | 23.0 lb | 5000 PSI | 33 lb | 1 1/2-1/2 in | 80 in3 |
FCP14-250 | 23.0 lb | 5000 PSI | 44 lb | 1 1/2-1/2 in | 250 in3 |
FCP14-160 | 23.0 lb | 5000 PSI | 36 lb | 1 1/2-1/2 in | 160 in3 |
FCP13-80 | 23.0 lb | 5000 PSI | 33 lb | 1 1/4-1/2 in | 80 in3 |
FCP13-250 | 23.0 lb | 5000 PSI | 44 lb | 1 1/4-1/2 in | 250 in3 |
FCP13-160 | 23.0 lb | 5000 PSI | 36 lb | 1 1/4-1/2 in | 160 in3 |
FCP04-80 | 9.0 lb | 10000 PSI | 33 lb | 1 1/2-5/16 in | 80 in3 |
FCP04-250 | 9.0 lb | 10000 PSI | 44 lb | 1 1/2-5/16 in | 250 in3 |
FCP04-160 | 9.0 lb | 10000 PSI | 36 lb | 1 1/2-5/16 in | 160 in3 |
