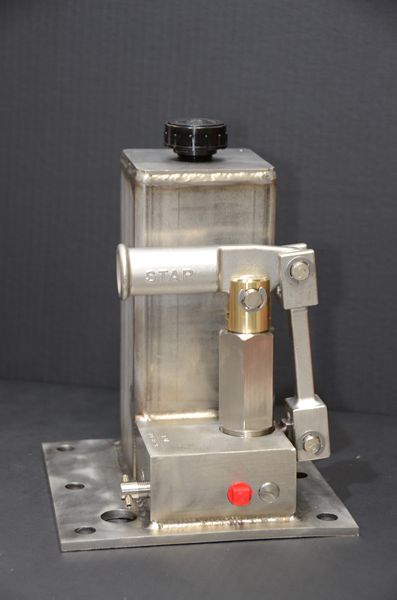

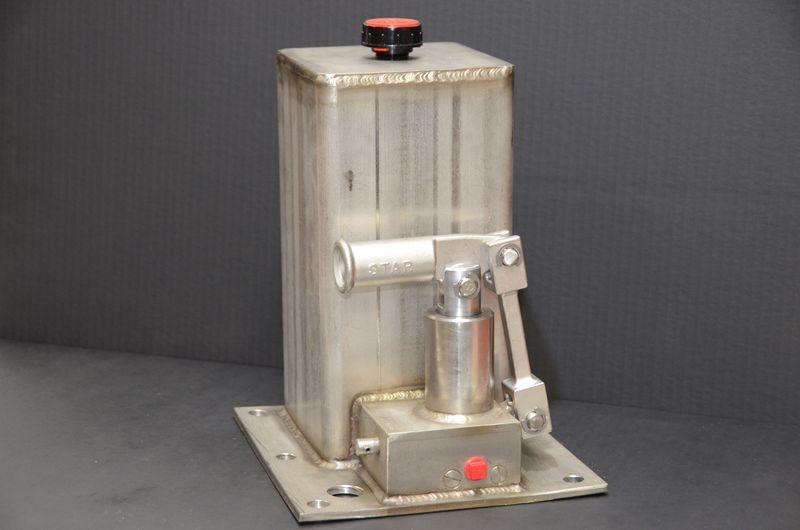

Stainless Steel Hand Operated Hydraulic Pumps - P-A & P-AC Series with Reservoirs

Star P series pumps have built-in reservoirs. Hand operated P series pumps are available with either a screw pressure release valve for a controlled lowering speed, or an easy to operate cam release for a fast, time-saving lowering speed. Hand pumps are supplied complete with operating levers.
Maximum pressure of the hand pump is 10,000 PSI. The adjustable overload will be set at the maximum pressure at the factory unless a lower pressure is specified by the customer. The overload can be adjusted by the customer in the field, if required.

  • Standard reservoir capacity to 250 cubic inches-larger sizes available
  • Maximum pressure 10000 PSI
  • All steel pump bodies
  • Pistons ground and hard chrome plated
  • Reservoir breather filter.
  • 24" Operating lever supplied
Item # Lever Load per 100 PSIMaximum Pressure RatingNet Weight w/o OilPiston DiameterReleaseReservoir VolumeVolume per Stroke
P6AC-80-SS 20.0 lb500 PSI22-26 lb2 inCam Release80 in3 in3
P6AC-250-SS 20.0 lb500 PSI29-34 lb2 inCam Release250 in3 in3
P6AC-160-SS 20.0 lb500 PSI25-29 lb2 inCam Release160 in3 in3
P6A-80-SS 20.0 lb500 PSI22-26 lb2 inScrew Release80 in3 in3
P6A-250-SS 20.0 lb500 PSI29-34 lb2 inScrew Release250 in3 in3
P6A-160-SS 20.0 lb500 PSI25-29 lb2 inScrew Release160 in3 in3
P5AC-80-SS 11.0 lb1000 PSI22-26 lb1 1/2 inCam Release80 in3 in3
P5AC-250-SS 11.0 lb1000 PSI29-34 lb1 1/2 inCam Release250 in3 in3
P5AC-160-SS 11.0 lb1000 PSI25-29 lb1 1/2 inCam Release160 in3 in3
P5A-80-SS 11.0 lb1000 PSI22-26 lb1 1/2 inScrew Release80 in3 in3
P5A-250-SS 11.0 lb1000 PSI29-34 lb1 1/2 inScrew Release250 in3 in3
P5A-160-SS 11.0 lb1000 PSI25-29 lb1 1/2 inScrew Release160 in3 in3
P4AC-80-SS 7.8 lb1500 PSI22-26 lb1 1/4 inCam Release80 in3 in3
P4AC-250-SS 7.8 lb1500 PSI29-34 lb1 1/4 inCam Release250 in3 in3
P4AC-160-SS 7.8 lb1500 PSI25-29 lb1 1/4 inCam Release160 in3 in3
P4A-80-SS 7.8 lb1500 PSI22-26 lb1 1/4 inScrew Release80 in3 in3
P4A-250-SS 7.8 lb1500 PSI29-34 lb1 1/4 inScrew Release250 in3 in3
P4A-160-SS 7.8 lb1500 PSI25-29 lb1 1/4 inScrew Release160 in3 in3
P3AC-80-SS 4.9 lb2500 PSI22-26 lb1 inCam Release80 in3 in3
P3AC-250-SS 4.9 lb2500 PSI29-34 lb1 inCam Release250 in3 in3
P3AC-160-SS 4.9 lb2500 PSI25-29 lb1 inCam Release160 in3 in3
P3A-80-SS 4.9 lb2500 PSI22-26 lb1 inScrew Release80 in3 in3
P3A-250-SS 4.9 lb2500 PSI29-34 lb1 inScrew Release250 in3 in3
P3A-160-SS 4.9 lb2500 PSI25-29 lb1 inScrew Release160 in3 in3
P2AC-80-SS 2.8 lb5000 PSI22-26 lb3/4 inCam Release80 in3 in3
P2AC-250-SS 2.8 lb5000 PSI29-34 lb3/4 inCam Release250 in3 in3
P2AC-160-SS 2.8 lb5000 PSI25-29 lb3/4 inCam Release160 in3 in3
P2A-80-SS 2.8 lb5000 PSI22-26 lb3/4 inScrew Release80 in3 in3
P2A-250-SS 2.8 lb5000 PSI29-34 lb3/4 inScrew Release250 in3 in3
P2A-160-SS 2.8 lb5000 PSI25-29 lb3/4 inScrew Release160 in3 in3
P1AC-80-SS 1.2 lb10000 PSI22-26 lb1/2 inCam Release80 in3 in3
P1AC-250-SS 1.2 lb10000 PSI29-34 lb1/2 inCam Release250 in3 in3
P1AC-160-SS 1.2 lb10000 PSI25-29 lb1/2 inCam Release160 in3 in3
P1A-80-SS 1.2 lb10000 PSI22-26 lb1/2 inScrew Release80 in3 in3
P1A-250-SS 1.2 lb10000 PSI29-34 lb1/2 inScrew Release250 in3 in3
P1A-160-SS 1.2 lb10000 PSI25-29 lb1/2 inScrew Release160 in3 in3
